StoneFly OptiSANTM
Optimal Fusion of Value and Performance

StoneFly OptiSANTMmeets the challenges of the most demanding computing environments while setting the standard for ease of use. OptiSAN is a perfect complement to a Fibre Channel SAN while providing all the benefits of an IP SAN. It supports high transactional rates and sustains optimum throughput for high bandwidth functions making it a versatile workhorse for demanding applications.

Based on a Storage Concentrator® i3000 running the StoneFusion® 4.0 OS, OptiSAN delivers key functions users have come to expect in an IP SAN, including centralized management, storage consolidation, access control, storage provisioning, and volume management. It even includes advanced storage management functions, such as synchronous mirroring through built-in StoneFly ReflectionTM and StoneFly Snapshot at no extra charge.

OptiSAN storage arrays come with an abundance of high-reliability features, including advanced sub-array support with true RAID data protection built into 14 Serial ATA II high-speed disk drives. Dual Fibre Channel connectors on each RAID controller enable FailOver clustering for high availability. To provide enterprise-level performance, StoneFly also offers a wide range of software and hardware options, such as Continuous Data Protection, D2D Backup and FailOver.

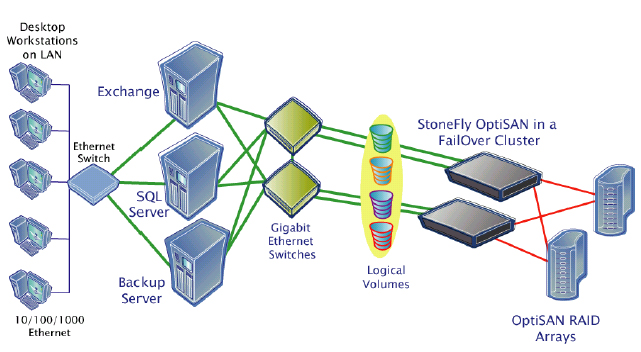

The StoneFly OptiSAN line brings unprecedented performance and high availability to your IP SAN. OptiSAN Fibre Channel arrays can be connected directly to a Storage Concentrator or connect through a Fibre Channel switch. The Storage Concentrators can also serve up storage on a Fibre Channel SAN to servers on the gigabit Ethernet network.

StoneFly OptiSAN Benefits:
  • IP-based block-level provisioning appliance centralizes storage management, control, and monitoring of logical storage volumes
  • Easy-to-use HTML-based management interface
  • Built-in StoneFly ReflectionTM for local and campus-wide synchronous mirroring of Storage Concentrator volumes
  • Includes StoneFly Snapshot to protect against loss of critical data
  • Centralizes access and control, allowing administrator to designate which physical storage devices are accessible to individual hosts
  • Allows administrator to quickly respond to changes in storage requirements, including expanding volumes on the fly
  • Supports a wide range of software, including StoneFly Replicator® CDP, and StoneFly Backup AdvantageTM

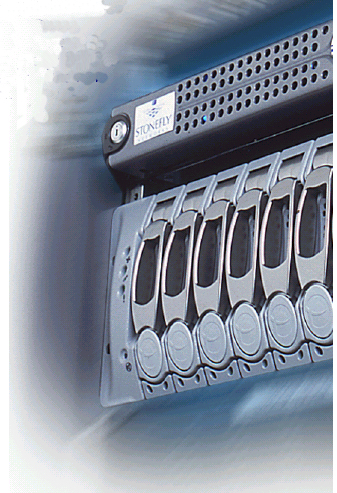

  • OptiSAN storage arrays features hotswappable drive tray mechanisms, automatic drive failure detection, online rebuild, and hotswappable power supplies
  • Industry-leading FailOver Clustering and dual- RAID controllers are available
  • Completely compatible with existing StoneFly IP SANs
Unprecedented Throughput

StoneFly OptiSANs include Storage Concentrator i3000s and advanced RAID storage from a single source provider. StoneFly OptiSANs are designed to meet the rigorous demands of high-performance applications with the following features:
  • Built-in StoneFly Snapshot and StoneFly Reflection synchronous mirroring
  • Version 4.0 of the StoneFusion® Intelligent Network Storage Platform
  • Modular configuration protects your investment—add storage only when you need it
  • Advanced storage provisioning supports logical volume management
  • Add on advanced data protection software such as backup and restore, replication, and continuous data protection
  • Compatible with Fibre Channel SANs and Fibre Channel switches
  • Easy to install and to use
  • High performance RAID cache mirroring

StoneFly OptiSAN RAW Capacity Drive Configuration
OPT-14250-N-S 3.5 TB 14 250GB
OPT-14400-N-S 5.6 TB 14 400GB
OPT-14500-N-S 7.0 TB 14 500GB
StoneFly OptiSAN FailOver Cluster RAW Capacity Drive Configuration
OPT-14250-N-D 3.5 TB 14 250GB
OPT-14400-N-D 5.6 TB 14 400GB
OPT-14500-N-D 7.0 TB 14 500GB
Additional RAID Arrays RAW Capacity Drive Configuration
ST14250-N 3.5 TB 14 250GB
ST14400-N 5.6 TB 14 400GB
ST14500-N 7.0 TB 14 500GB
Optional RAID Controller N/A Controller
OPT-CTR-FC-N N/A Hot-Swappable Fibre Controller

StoneFly Networks not responsible for misprints, typographical errors or omissions.

StoneFly OptiSAN nodes start with one array populated with fourteen drives. Expand arrays one at a time or add multiple arrays to scale capacity easily and quickly. With advanced software features, OptiSANs can provide performance tailored to your applications now and in the future.
